Graphite Felt Carbon Graphite Hard Felt or Soft Felt

Graphite Felt/ Carbon felt Feature:Low ash content / High carbon content / Low gas evolution Excellent heat insulation / Low thermal conductivityLong life time / Good anticorrosion / High oxidation resistance Easy Handling / Good Strength Application:1.Heat insulation materials  2.Electrical elements3.Ab

Featured Products

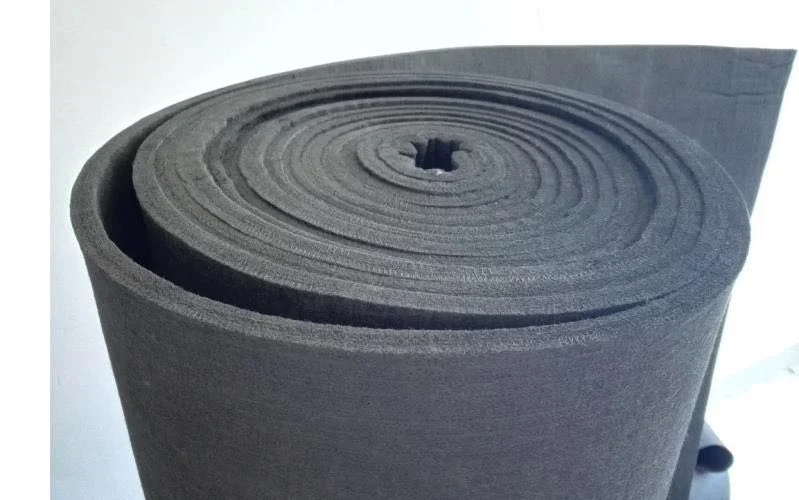

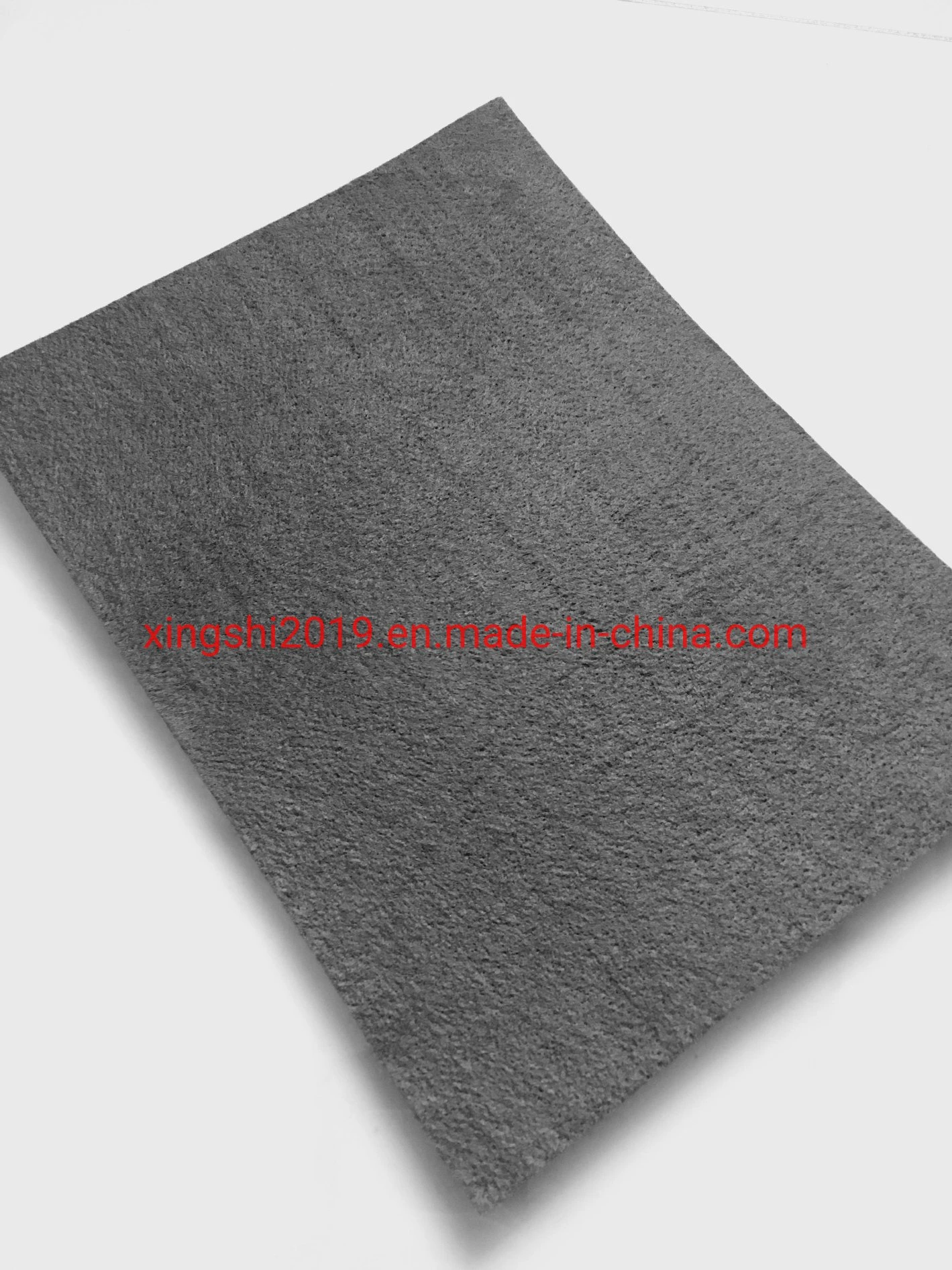

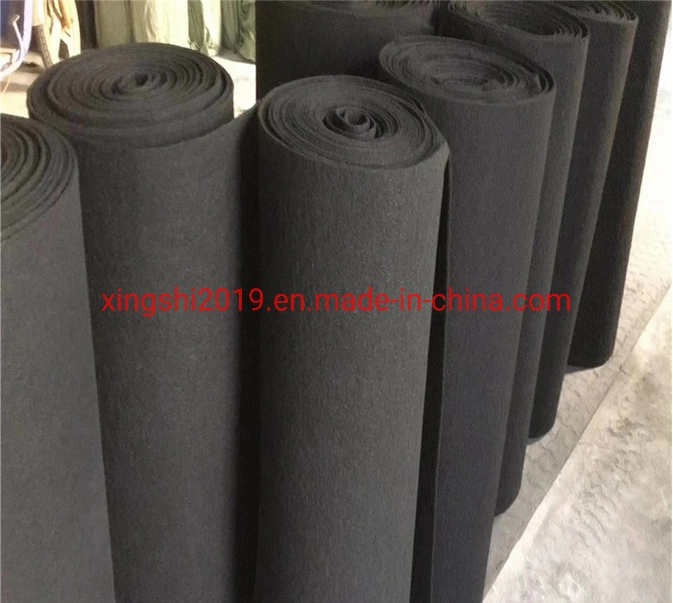

Graphite Felt/ Carbon felt


Feature:
Low ash content / High carbon content / Low gas evolution
Excellent heat insulation / Low thermal conductivity
Long life time / Good anticorrosion / High oxidation resistance
Easy Handling / Good Strength

Application:
1.Heat insulation materials
2.Electrical elements
3.Absorptive materials
4.Reinforcing structure for C/C composite components and other products .
5.Aerospace industry for adiabatic materials
6.Thermal Insulation materials for ultra high temperature vacuum metallurgy equipment and other composite maaterials .
7.It can also be used in high performance far infrared heating elements
Etc

PRDUCTS PROPERTIES :


A PAN

Carbon/Graphite Soft Felt /Pan Based

PSF1

PSF2

PSF 3

PSF 4

Treat Temperature  oC

1100

1800

2200

2600

Bulk density   g/cm3

0.15

0.12

0.11-0.12

0.10-0.12

Carbon content   %

≥95.5

≥97.2

≥99.95

≥99.99

Ash content   %

≤0.7

≤0.3

≤0.01

≤0.005



Carbon/Graphite Rigid Felt /Pan Based

PRF 1

PRF 2

PRF 3

PRF 4

Treat Temperature  oC

1100

1800

2200

2600

Bulk density   g/cm3

0.23-0.26

0.24-0.25

0.18-0.24

0.18-0.22

Carbon content   %

≥95

≥97

≥99.9

≥99.99

Ash content   %

≤0.75

≤0.4

≤0.02

≤0.008

Special property requirements specially produced.
Anticorrosion cover available(Graphite cloth, Graphite foil, Pitch Painting, etc)
Machine work done to drawing


PRODUCTION DETAILS OF CARBON FELT/GRAPHITE FELT PROCESS :

The carbon felt is a graphite felt after being treated at a high temperature of 2000ºC or higher under a vacuum or an inert atmosphere,and the carbon content is higher than that of the carbon felt ,and is more than 99% .In addition to the high purity ,high temperature resistance ,corrosion resistance and non-melting properties of the graphite ,,the graphite felt has the advantages of elasticity ,arbitrarily folded ,cut and stiched with graphite yarn .The main purpose of graphite felt is as insulation and graphite yarn .The main purpose of graphite felt is as insulation and heat insulation material for single crystal silicon smelting furnace . It can be used as filter material for high purity corrosive chemicals in the chemical industry .The graphite felt can be used at a temperature of about 3000ºC under a non-oxidizing atmosphere .

Size

Carbon/Graphite Soft Felt                     / Pan Based

Length

Width

Thickness

Size Range

0-24m

0-1.35m

0-13 mm

Standard Size

12m

1/1.2m

3/5/6/8/10/12/12.7 mm

Carbon/Graphite Rigid Felt           / Pan Based

Length

Width

Thickness

Size Range

0-1.7m

0-1.5m

18-600 mm

Standard Size

1/1.5m

1/1.5m

20-600 mm


B RAYON

Carbon/Graphite Soft Felt  / Rayon Based

RSF1

RSF2

Treat Temperature     oC

1100

1800

Bulk density   g/cm3

0.12

0.08

Carbon content   %

≥91

≥99

Ash content   %

≤1.0

≤0.1

Special property requirements specially produced.


Carbon/Graphite Soft Felt  / Rayon Based

Length

Width

Thickness

Size Range

0-24m

0-1.2m

0-13 mm

Standard Size

12m

1/1.2m

3/5/6/8/10/12/12.7 mm

Anticorrosion cover available(Graphite cloth, Graphite foil, Pitch Painting, etc)
Machine work done to drawing
C PITCH


Carbon/Graphite Rigid Felt                     / Pitch Based

HRF1

Treat Temperature  oC

2200

Bulk density   g/cm3

0.16

Carbon content   %

≥99.98

Ash content   %

≤0.02

Special property requirements specially produced.


Carbon/Graphite Rigid Felt                     / Pitch Based

Length

Width

Thickness

Size Range

0-1.7m

0-1.5m

18-600 mm

Standard Size

1/1.5m

1/1.5m

20-600 mm

Anticorrosion cover available(Graphite cloth, Graphite foil, Pitch Painting, etc)
Machine work done to drawing

OTHER GRAPHITE PRODUCTS OF OUR COMPANY CAN PROVIDE :

RAPHITE MATERIALISOSTATIC GRAPHITE
MOLDED GRAPHITE
EXTRUDED GRAPHITE
VIBRATION GRAPHITE
GRAPHITE PRODUCTGRAPHITE TUBE
GRAPHITE ROD,BLOCK,PLATE
GRAPHITE PARTS
CYLINDER OF LUBRICANT
GRAPHITE ElECTRODE
GRAPHITE CRUCIBLE

GRAPHITE CRUCIBLE

PRESSED CRUCIBLE

QUARTZ CRUCIBLE

CARBON FELT/GRAPHITE FELTCARBON FELT/GRAPHITE FELT
FLEXIBLE GRAPHITEGRAPHITE FOIL/SHEET
CARBON/CARBON COMPOSITE

CC BRAKE PADS

CC BOARDS BLOCKS AND CYLINDERS

CC PARTS

PRODUCTION FLOWTHE FlOW OF GRAPHITE MATERIAL AND PRODUCTS
THE FLOW OF CARBON/GRAPHITE FELT


Item
Index
No.
RCF Carbon fiber Felt
RCF Graphite fiber felt
PAN Carbon fiber felt
PAN Graphite Fiber felt
Material
RCF
RCF
PAN-CF
PAn-CF
Bulk Density(g/cm3)
0.10-0.12
0.08-0.10
0.14-0.17
0.12-0.14
Carbon (%)
≥98.5
≥99
≥98.5
≥99
Fhermal Conductivity (1150 ºC)'
0.08-0.15
0.06-0.14
0.12-0.18
0.08-0.14
Tensile strength Mpa
0.13
0.1
0.15
0.14
Crushing stress at 10% compression (N/cm3)
6-10
5-8
8-12
8-10
Ash%
≤0.05
≤0.005
≤0.05
≤0.005
Processiong Temperature(ºC)
1200
2500
1200
2500
Operating
Condition
In the air
≤400
≤400
≤400
≤400
in the vacuum
≥1500
≥2200
≥1500
≥2200
in the inert gases
≥1800
≥2500
≥1800
≥2500

Spec Dimension
Length
16-18
width
1000-1300
Thickness
3,5,8,10

Normal Specifications :

Item

Index

NO.

PAN Carbon felt

PAN Graphite felt

Density(g/cm3)

0.14-0.17

0.12-0.14

Ash(%)

≥98.5

≥99

Thermal Conductivity(1150ºC)(W/m.k)

0.12-0.18

0.08-0.14

Tensile Strength(Mpa)

0.15

0.14

Compression 10% Compression Stress

(N/cm2)

8-12

8-10

Ash(%)

≤0.05

≤0.005

Processing Temperature(ºC)

1200

2500

Working

Environment

Air(ºC)

≤400

≤400

Vacuum(ºC)

≥1500

≥2200

Inactive Gas(ºC)

≥3200

≥3500

Descriptions

Length(m)

12-15m

Width(mm)

1.2m/1.4m

Thickness(mm)

8-15

Graphite Felt Carbon Graphite Rigid or Soft Felt


For the graphite products,We have mold graphite,isostatic graphite,extruded graphite,vibration graphite. bulk density from 1.6g/cm3 to 1.91g/cm3.
Carbon-graphite products for electron and semiconductor industry
 Carbon-graphite products for application of processing by industrial furnace under high temperature;--
Carbon-graphite products for sintering mold of diamond tools Carbon-graphite products for non-ferrous metallurgy and processing;
 Carbon-graphite products for mechanical industry;
Carbon-graphite products for high-tech field
Carbon-graphite products for EDM
Carbon-graphite products for aviation and aerospace industry.
