HP Graphite Electrodes

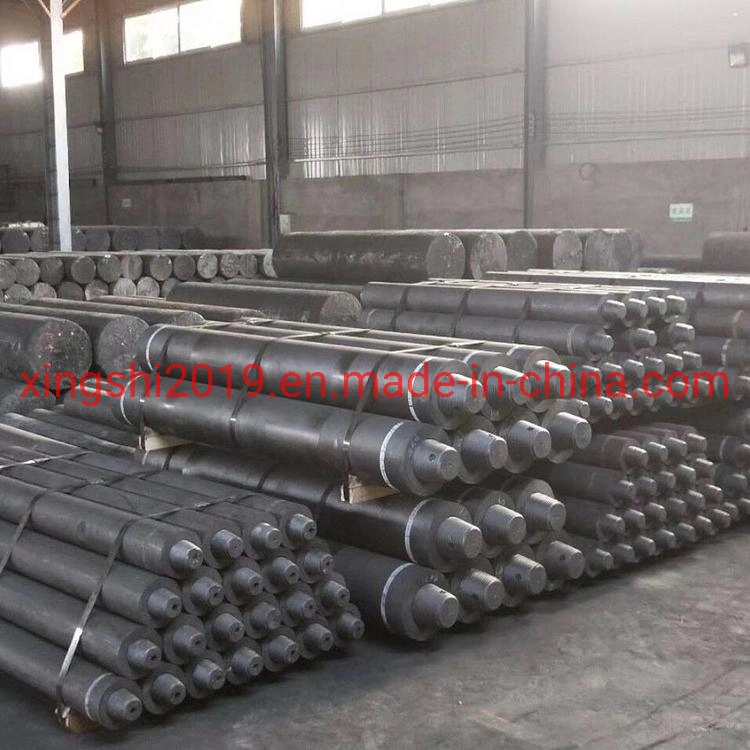

Description: The electrodes carry the electricity that heats electric arc furnaces, the vast majority steel furnaces. They are made from petroleum coke after it is mixed with petroleum pitch, extruded and shaped, then baked to sinter it, and then graphitized by heating it above the temperature (3000 °C) that converts carbon to graphite. They can vary in size up to 11 ft. long and 30 in. in diameter.
Grade:HP (High Power), HP Resistance (μΩ.m):≤6.5
Apparent Density (g/cm³ ):≥ 1.65 Flexural Strength (N/):≥12.0
Length: 1800mm Diameter: 300mm
Product Paramenters
| Index(mm) | bulk density (g/cm2) | Cold crushing strength (MPa) | Rupture strength (MPa) | specific resistance μΩm | ash content % | grain size (mm) |
| 700-2300*350 | ≥1.58 | 20 | 7.5 | 9-10 | 0.4 | ≤3 |
| 600-700*2200 | 1.6-1.75 | 22 | 10 | 9 | 0.4 | |
| 600-800*2400 | 1.62 | 26 | 13 | 7 | 0.4 | |
| 420*880*3600 | ≥1.72 | ≥30 | 13.5 | ≤8.5 | 0.4 | 0.8 |
| 200*600*2200 | 1.75 | 2.8 | 13 | ≤8.5 | 0.4 | 2 |

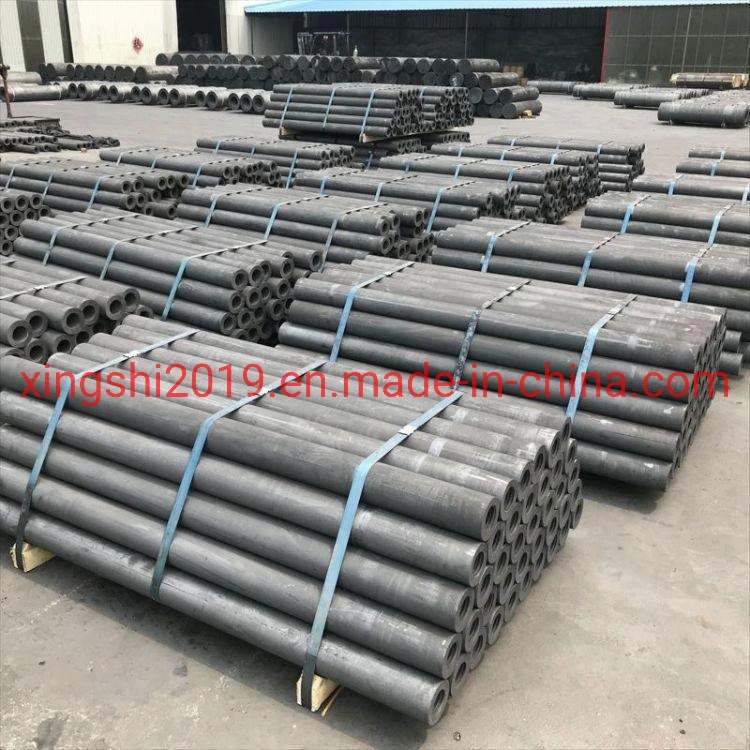

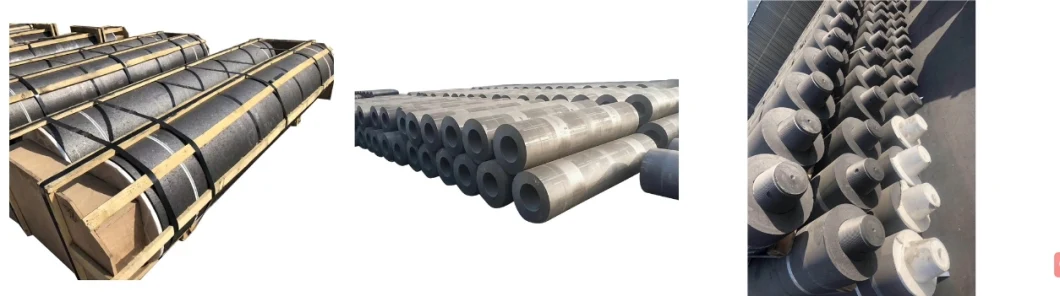

Packaging Details :in wooden case or package as customer's order

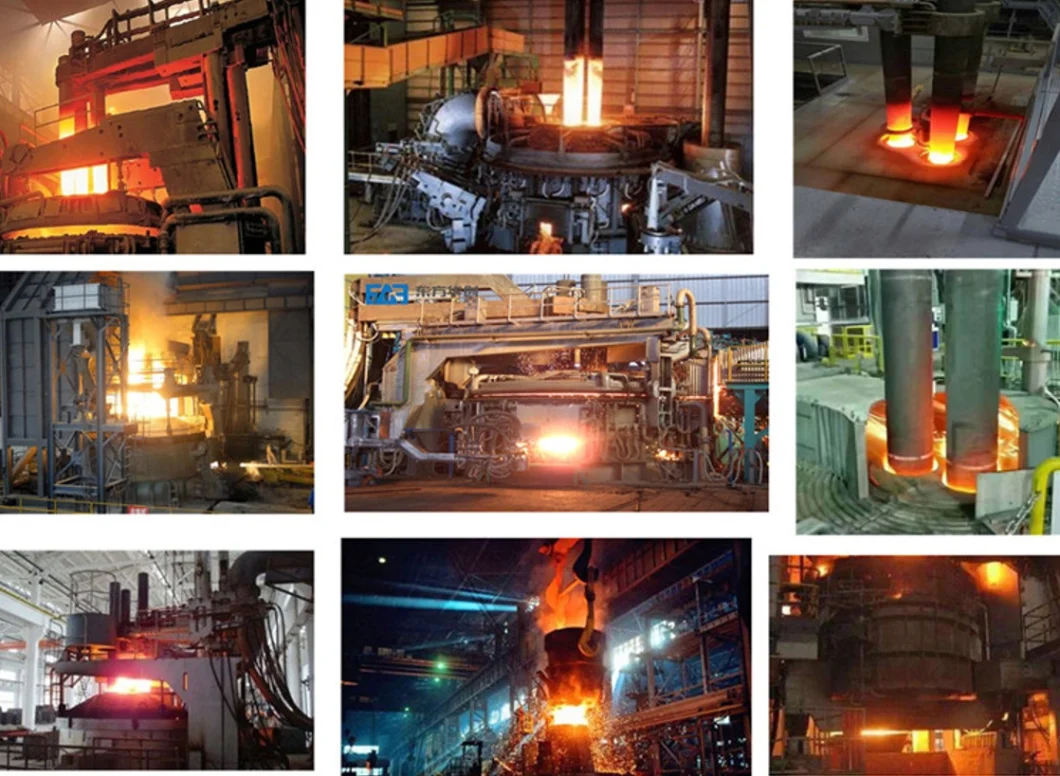

Application:Mainly used for the electric arc furnace to smelt the molten steel and used for the refining furnace such as AOD VOD LF furnaces in the steel and non-ferrous metal metallurgy industry.
WE havea large customers from international market .
Our shipping method as below :
contcat us :
