Hengtai Group, one of the leading enterprises in China Carbon Industry, has been specializing in technology research and development, manufacturing and sales of graphite electrodes, carbon additive and other carbon products. Graphite electrodes are widely used in electric arc furnace and ladle furnace for steel production, ferroalloy production, silicon metal production and smelting processes. In addition to high temperature which can reach up to 3000, our graphite electrodes are featured with lower electric resistivity, lower consumption, lower coefficient of thermal expansion, higher transverse strength, higher elastic modulus and higher oxidation resistance.
High Quality RP,HP,UHP HengTai Graphite Electrodes
ItemTypeUnitGraphite Electrode
RPHPUHP
Φ300-Φ800mmΦ300-Φ800mmΦ300-Φ500mmΦ600-Φ750mm
Typical ValueTypical ValueTypical ValueTypical Value

Electric Resistivity Electrodeµ Ωm7.0-9.05.8-6.64.3-5.84.3-5.8
Nipple4.0-4.53.5-4.03.5-4.03.5-4.0

Transverse
Strength
ElectrodeMpa8.0-10.010.0-13.010.0-1510.0-15
Nipple19.0-22.020.0-23.020.0-2422.0-26
Elastic Modulus ElectrodeGpa7.0-9.38.0-12.09.0-13.010.0-14
Nipple12.0-14.014.0-16.015.0-1816.0-19
Bulk Density Electrodeg/cm31.60-1.661.66-1.681.68-1.71.7-1.76
Nipple1.70-1.741.75-1.801.78-1.81.8-1.84
Coefficient Thermal Expansion  Electrode×10-6/ºC2.2-2.61.6-1.91.1-1.41.1-1.4
Nipple2.0-2.51.1-1.40.5-1.20.5-1.2
Ash %0.30.30.30.3

Dimensions for Graphite electrode conical nipples
Dimensions for Graphite electrodeconical nipplessocket plugscrew pitch
Dd2LId1H
deviationdeviation
typemetric systemBritish system-0.30-0-0.30 0-1- 070-0.30-78.47
3TPI2259″139.791.22203.2141.22107.6
25010″155.57104.2220157.09116
30012″177.16117.39270.9148.68141.5
35014″215.9150.48304.8217.42158.4
40016″215.9150.48304.8217.42158.4
40016″241.3170.23338.7242.82175.3
45018″241.3170.23338.7242.82175.3
45018″273.05199.17355.6274.57183.8
50020″273.05199.17355.6274.57183.8
50020″298.45221.73372.6299.97192.2
55022″298.45221.73372.6299.97192.2
60024″336.55245.73457.3338.07234.6
3TPIL35014″215.9144.85338.7217.42175.3
40016″241.3167.43355.6242.82183.8
45018″273.05182.23457.3274.57234.6
4TPI2008″122.2481.48177.87115.9294.96.35
2259″139.798.94177.8133.3894.9
25010″152.4109.52190.5146.08101.3
30012″177.8130.69215.9171.48114
35014″203.2149.74254196.88133
40016″222.25160.32304.8215.93158.4
45018″241.3197.37304.8234.98158.4
50020″269.88199.49355.6263.56183.8
55022″298.45228.06355.6292.13183.8
60024″317.5247.11355.6311.18183.8
65026″355.6268.27457.2349.28234.6
70028″374.65287.32457.2368.33234.6
4TPIL30012″177.8124.34254171.48133
35014″203.2141.27304.8196.88158.4
40016″222.25151.86355.6215.93183.8
45018″241.3190.91355.6234.98183.8
50020″269.88182.55457.2263.56234.6
55022″298.45211.12457.2292.13234.6
60024″317.5230.17457.2311.18234.6
65026″355.64251.38558.8349.28285.4
70028″374.65370.39588.8368.33285.4

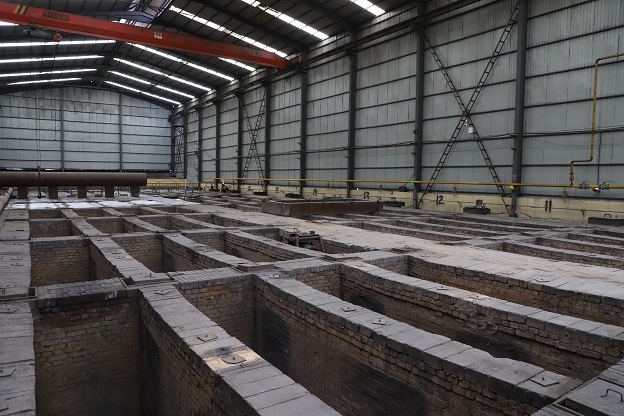

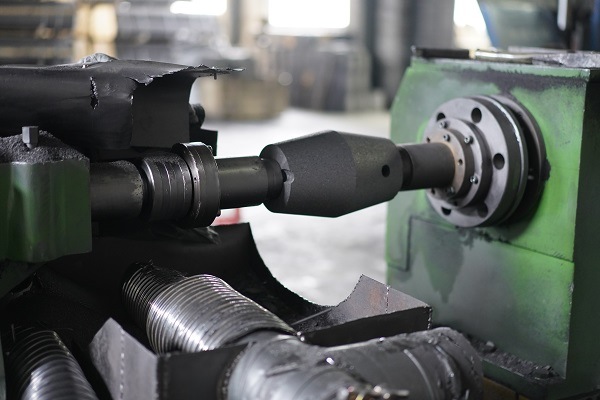

Hengtai Group has built the perfect carbon production processes including calcining, forming, baking, impregnation, graphitization and machining and also has advanced inspection and testing facilities and techniques. Our group has 24-pot calcinator, 3500 MT vacuumized oil hydraulic extrusion forming machine, 18-chamber ring baking furnace, high-pressure impregnation system, full CNC machine line and the first-class carbon inspection equipment.
HP Graphite Electrodes Welding Electrodes 4tpi Preset Nipples
HP Graphite Electrodes Welding Electrodes 4tpi Preset NipplesHP Graphite Electrodes Welding Electrodes 4tpi Preset Nipples

HP Graphite Electrodes Welding Electrodes 4tpi Preset NipplesHP Graphite Electrodes Welding Electrodes 4tpi Preset Nipples

HP Graphite Electrodes Welding Electrodes 4tpi Preset Nipples


The main products of Hengtai Group are from Φ50mm to Φ750mm RP, HP, UHP graphite electrodes with annual output of 50,000 tons, as well as high quality carbon additive and other graphite products.
 HP Graphite Electrodes Welding Electrodes 4tpi Preset Nipples

HP Graphite Electrodes Welding Electrodes 4tpi Preset Nipples
HP Graphite Electrodes Welding Electrodes 4tpi Preset Nipples
HP Graphite Electrodes Welding Electrodes 4tpi Preset Nipples

HP Graphite Electrodes Welding Electrodes 4tpi Preset NipplesHP Graphite Electrodes Welding Electrodes 4tpi Preset Nipples


How to Choose the Suitable Graphite Electrode Type:

If the Current Density is less than 17 A/cm2you can choose RP. If the Current Density is between 18 and 25 A/cm2, you can choose HP. If the Current Density is above 25 A/cm2UHP should be selected.

Allowable Current of RP/HP/UHP Graphite Electrodes

TypeNominal diameter (mm)Allowable Current(A)Current Density(A/cm2)
RP200-30013000-1740017
HP350-60017400-5800018-25
UHP350-70058000-7200025



Instructions of usage for Graphite Electrode:

Notes of usage:

1. The electrodes should be stored in the clean and dry places, and should be avoided for shock and collision. Before used, the electrodes should be baked to dry.

2. To Place the nipples, first use compressed air to clean the hole, then carefully screwed the nipples into it (do not damage the thread).
3. To connect the electrodes, when there's 20-30mm distance between the two electrodes, using compressed air to clean the two extremes.
4.When use the wrenches to connect electrodes, should be fully tighten to specified torque.
5.To avoid electrode broken, please remove the insulating material in the furnace.
6.To avoid electrode broken, please place the big block in the lower and smaller block at the upper.
